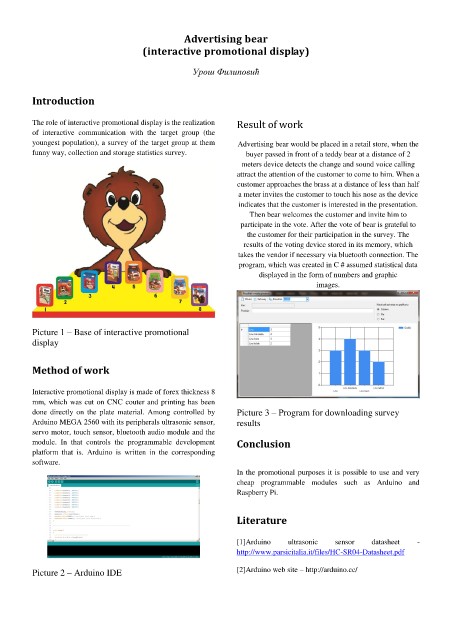

Advertising bear
(interactive promotional display)

Урош Филиповић

Introduction

The role of interactive promotional display is the realization Result of work
of interactive communication with the target group (the
youngest population), a survey of the target group at them Advertising bear would be placed in a retail store, when the
funny way, collection and storage statistics survey. buyer passed in front of a teddy bear at a distance of 2
meters device detects the change and sound voice calling
attract the attention of the customer to come to him. When a
customer approaches the brass at a distance of less than half
a meter invites the customer to touch his nose as the device
indicates that the customer is interested in the presentation.
Then bear welcomes the customer and invite him to
participate in the vote. After the vote of bear is grateful to
the customer for their participation in the survey. The
results of the voting device stored in its memory, which
takes the vendor if necessary via bluetooth connection. The
program, which was created in C # assumed statistical data
displayed in the form of numbers and graphic
images.

Picture 1 – Base of interactive promotional
display

Method of work

Interactive promotional display is made of forex thickness 8
mm, which was cut on CNC couter and printing has been
done directly on the plate material. Among controlled by Picture 3 – Program for downloading survey
Arduino MEGA 2560 with its peripherals ultrasonic sensor, results
servo motor, touch sensor, bluetooth audio module and the
module. In that controls the programmable development Conclusion
platform that is. Arduino is written in the corresponding
software.
In the promotional purposes it is possible to use and very
cheap programmable modules such as Arduino and
Raspberry Pi.

Literature

[1]Arduino ultrasonic sensor datasheet -
http://www.parsicitalia.it/files/HC-SR04-Datasheet.pdf

Picture 2 – Arduino IDE [2]Arduino web site – http://arduino.cc/
